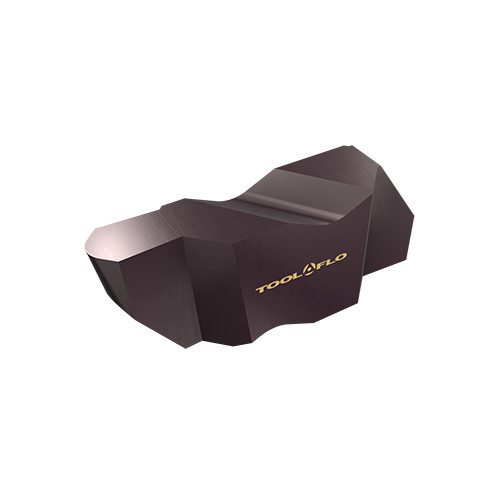

FLU-3156L GP50C
Undercut Grooving #3 Gage FloLock Inserts with Left Hand Clamping Notch

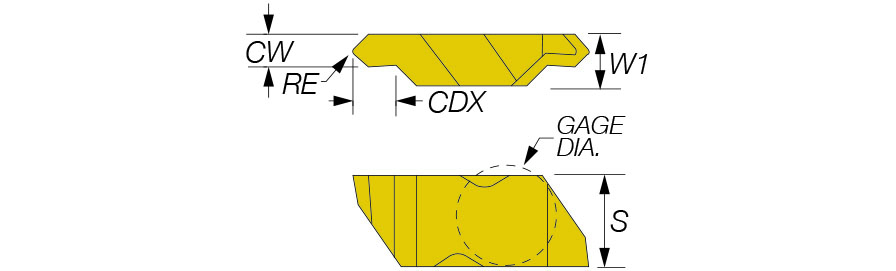

| Cutting Width (CW) | 0.156″ | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.047″ | Application | | Int Ext Grooving Flo Lock | |
| Profile Distance EY (PDY) | 0.188″ | Applicable Material | | Steel | Stainless Steel | |
| Cutting Depth Maximum (CDX) | 0.188″ | Cutting Direction (HAND) | Left Hand |
| Thread Pitch Maximum (TPX) | 0.344 mm | Measurement Type | Inch |
| Insert Thickness (S) | 0.195″ | Body Material | Carbide |
| Coating | TiN | Cutting Edge Length (L) | 0.405″ |
| Grade | GP50C | Height | 0.344″ |
| Shape | Parrallelogram | Unit | I |
Product Features
| Family Description | Undercut Grooving #3 Gage FloLock Inserts with Left Hand Clamping Notch | FamilyName | FLU-3-LH |
| COO | USA | BrandName | Tool-Flo |
Shipping Info
Weight per item
0.0005
Name
Groove/Turn Indexable Inserts
FamilyName
FLU-3-LH
BrandName
Tool-Flo
