| Inscribed Circle Diameter (IC) | 1/4″ | Shape | Triangle |
| Insert Length (INSL) | 0.433″ | Cutting Item Count (CICT) | 1 |
| Thread Pitch (TP) | 0.039 mm | Threads per Inch Minimum (TPIN) | 1 |
| Threads per Inch (TPI) | 1 | Threads per Inch Maximum (TPIX) | 1 |
| Corner Radius (RE) | 0.0027″ | Tool Type | Threading Regular Inserts |
| Grade | AC22A | Measurement Type | Inch |
| Coating | TiAlN | Body Material | Carbide |
| Cutting Edge Material | Carbide | Number of Teeth | 1 |
| Application | | Internal Thread Milling | Internal Threading lay down | Threading Inserts | | Cutting Edge Length (L) | 0.433″ |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Thread Form Type (THFT) | M60 |
| Insert Style | Laydown (LT) | Unit | I |
| Cutting Direction (HAND) | Left Hand | Profile Distance EY (PDY) | 0.02″ |
| Chip Breaker Type | Z |
Product Features
| Family Description | Internal Left Hand ISO Metric (DIN13 12-1986 class 6H) Laydown Threading Inserts for General Industries | FamilyName | IL-ISO |
| COO | Israel | BrandName | Tool-Flo |
Shipping Info
Weight per item
0.0001
Name

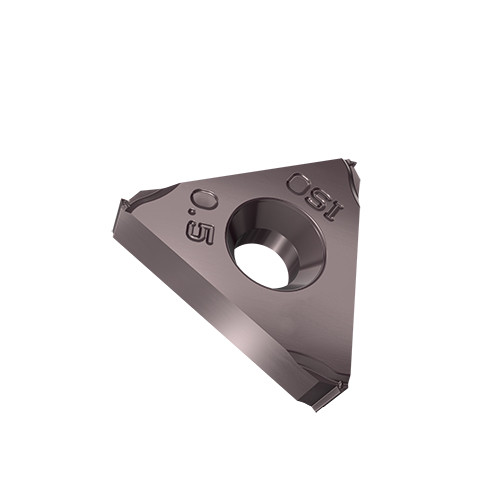

Laydown Threading Indexable Inserts
FamilyName
IL-ISO
BrandName
Tool-Flo
