| Inscribed Circle Diameter (IC) | 1/4″ | Insert Style | Laydown (LT) |
| Insert Length (INSL) | 0.433″ | Cutting Direction (HAND) | Left Hand |
| Threads per Inch (TPI) | 28 | Tool Type | Threading Regular Inserts |
| Corner Radius (RE) | 0.0016″ | Measurement Type | Inch |
| Grade | AC22A | Body Material | Carbide |
| Coating | TiAlN | Number of Teeth | 1 |
| Cutting Edge Material | Carbide | Thread Form Type (THFT) | UN60 |
| Application | | Internal Thread Milling | Internal Threading lay down | Threading Inserts | | Unit | I |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Profile Distance EY (PDY) | 0.0236″ |
Product Features
| Family Description | Internal Left Hand American UN Full Profile (UN, UNC, UNF, UNEF) Laydown Threading Inserts for General Industries | FamilyName | IL-UN |
| COO | Israel | BrandName | Tool-Flo |
Shipping Info
Weight per item
0.0001
Name

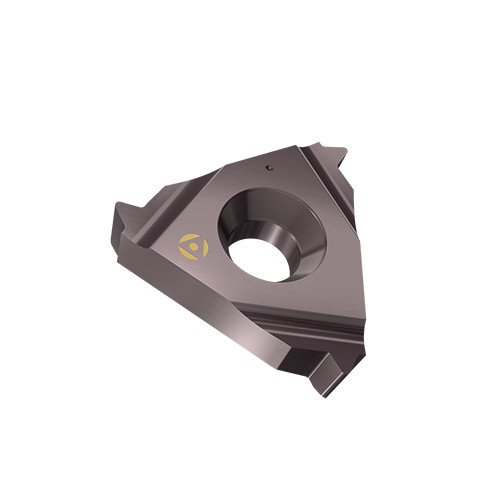

Laydown Threading Indexable Inserts
FamilyName
IL-UN
BrandName
Tool-Flo
