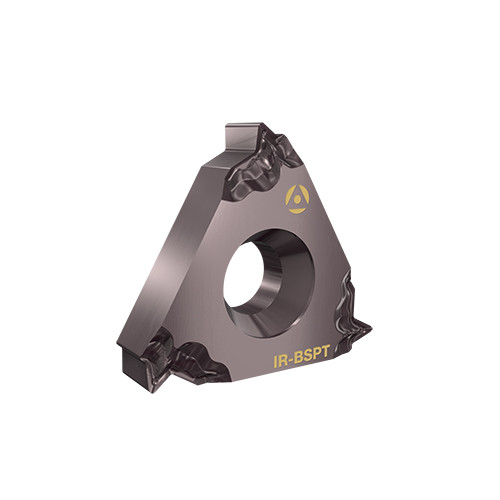

11IR 14BSPT AC22A
Internal Right Hand BSPT (British Standard Pipe) B.S.21-1957Full Profile Laydown Threading Inserts
| Inscribed Circle Diameter (IC) | 1/4″ | Cutting Direction (HAND) | Right Hand |
| Insert Length (INSL) | 0.433″ | Shape | Triangle |
| Threads per Inch (TPI) | 14 Threads/" | Threads per Inch Minimum (TPIN) | 14 Threads/" |
| Corner Radius (RE) | 0.0091″ | Threads per Inch Maximum (TPIX) | 14 Threads/" |
| Grade | AC22A | Tool Type | Threading Regular Inserts |
| Coating | TiAlN | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Application | | Internal Thread Milling | Internal Threading lay down | Threading Inserts | | Thread Form Type (THFT) | BSPT55 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Unit | I |
| Insert Style | Laydown (LT) | Profile Distance EY (PDY) | 0.04″ |
Product Features
| Family Description | Internal Right Hand BSPT (British Standard Pipe) B.S.21-1957Full Profile Laydown Threading Inserts | FamilyName | IR-BSPT |
| COO | Israel | BrandName | Tool-Flo |
Shipping Info
Weight per item
0.0001
Name
Laydown Threading Indexable Inserts
FamilyName
IR-BSPT
BrandName
Tool-Flo
