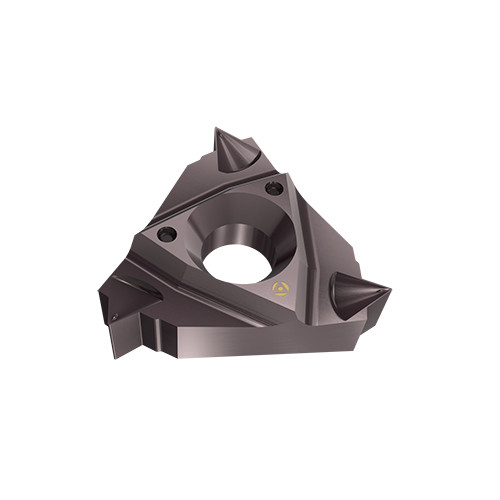

11IRM A60 AC22A
Internal Right Hand Laydown Threading Inserts with a 60° Partial Profile for General Industries with Chip Control
| Inscribed Circle Diameter (IC) | 1/4″ | Threads per Inch Minimum (TPIN) | 16 Threads/" |
| Insert Length (INSL) | 0.433″ | Threads per Inch Maximum (TPIX) | 48 Threads/" |
| Corner Radius (RE) | 0.002″ | Thread Pitch Minimum (TPN) | 0.5 mm |
| Grade | AC22A | Thread Pitch Maximum (TPX) | 1.5 mm |
| Coating | TiAlN | Tool Type | Threading Regular Inserts |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Application | | Internal Thread Milling | Internal Threading lay down | Threading Inserts | | Body Material | Carbide |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Number of Teeth | 1 |
| Insert Style | Laydown (LT) | Cutting Edge Length (L) | 0.433″ |
| Cutting Direction (HAND) | Right Hand | Thread Form Type (THFT) | VP60 |
| Chip Breaker Type | M | Unit | I |
| Shape | Triangle | Profile Distance EY (PDY) | 0.03″ |
Product Features
| Family Description | Internal Right Hand Laydown Threading Inserts with a 60° Partial Profile for General Industries with Chip Control | FamilyName | IR-60-CB |
| COO | Israel | BrandName | Tool-Flo |
Shipping Info
Weight per item
0.0001
Name
Laydown Threading Indexable Inserts
FamilyName
IR-60-CB
BrandName
Tool-Flo
