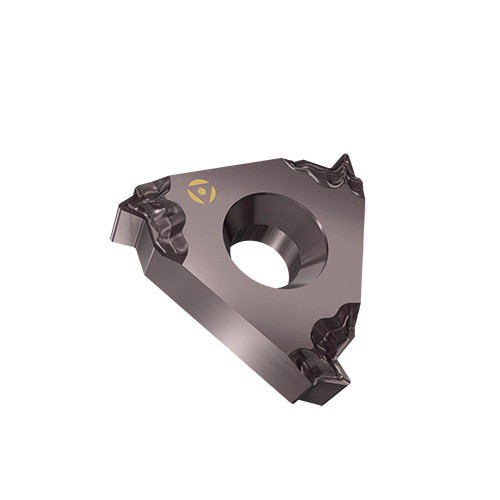

16EL 19 BSPT AC22A
External Left Hand BSPT (British Standard Pipe) B.S.21-1957 Full Profile Laydown Threading Inserts
| Inscribed Circle Diameter (IC) | 3/8″ | Chip Breaker Type | Z |
| Insert Length (INSL) | 0.63″ | Shape | Triangle |
| Threads per Inch (TPI) | 19 Threads/" | Threads per Inch Minimum (TPIN) | 19 Threads/" |
| Corner Radius (RE) | 0.0063″ | Threads per Inch Maximum (TPIX) | 19 Threads/" |
| Grade | AC22A | Tool Type | Threading Regular Inserts |
| Coating | TiAlN | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Application | | External Thread Milling | External Threading | Threading Inserts | | Thread Form Type (THFT) | BSPT55 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Unit | I |
| Cutting Direction (HAND) | Left Hand |
Product Features
| Family Description | External Left Hand BSPT (British Standard Pipe) B.S.21-1957 Full Profile Laydown Threading Inserts | FamilyName | EL-BSPT |
| COO | Israel | BrandName | Tool-Flo |
Shipping Info
Weight per item
0.0001
Name
Laydown Threading Indexable Inserts
FamilyName
EL-BSPT
BrandName
Tool-Flo
