| Inscribed Circle Diameter (IC) | 3/8″ | Shape | Triangle |
| Insert Length (INSL) | 0.649″ | Cutting Item Count (CICT) | 1 |
| Threads per Inch (TPI) | 36 | Threads per Inch Minimum (TPIN) | 36 |
| Corner Radius (RE) | 0.0027″ | Threads per Inch Maximum (TPIX) | 36 |
| Grade | AC22A | Tool Type | Threading Regular Inserts |
| Coating | TiAlN | Cutting Depth Maximum (CDX) | 0.63″ |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Application | | External Thread Milling | External Threading | Threading Inserts | | Body Material | Carbide |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Thread Form Type (THFT) | UN60 |
| Insert Style | Laydown (LT) | Unit | I |
| Cutting Direction (HAND) | Left Hand | Profile Distance EY (PDY) | 0.02″ |
Product Features
| Family Description | External Left Hand American UN Full Profile (UN, UNC, UNF, UNEF) Laydown Threading Inserts for General Industries | FamilyName | EL-UN |
| COO | Israel | BrandName | Tool-Flo |
Shipping Info
Weight per item
0.0001
Name

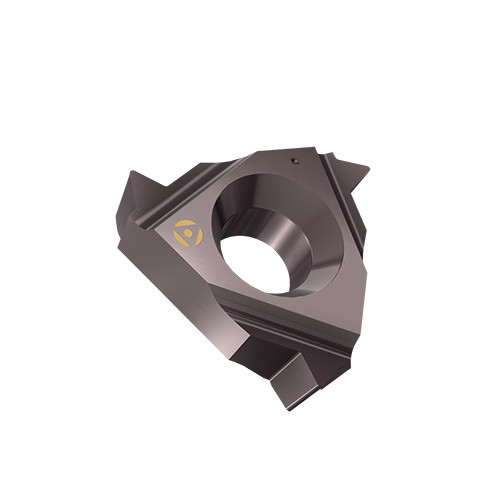

Laydown Threading Indexable Inserts
FamilyName
EL-UN
BrandName
Tool-Flo
