| Inscribed Circle Diameter (IC) | 3/8″ | Insert Style | Laydown (LT) |
| Insert Length (INSL) | 0.649″ | Cutting Direction (HAND) | Left Hand |
| Threads per Inch (TPI) | 8 | Tool Type | Threading Regular Inserts |
| Corner Radius (RE) | 0.0075″ | Measurement Type | Inch |
| Grade | AC22A | Body Material | Carbide |
| Coating | TiAlN | Thread Form Type (THFT) | NJ60 |
| Cutting Edge Material | Carbide | Unit | I |
| Application | | Internal Thread Milling | Internal Threading lay down | Threading Inserts | | Profile Distance EY (PDY) | 0.0472″ |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
Product Features

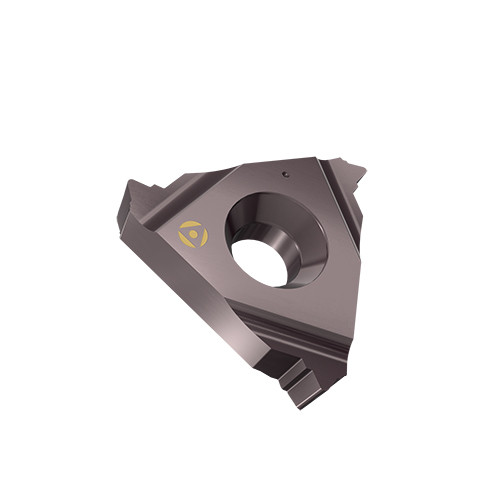

| Family Description | Internal Left Hand UNJ Profile Laydown Threading Inserts for the Aviation and Aerospace Industries | FamilyName | IL-UNJ |
| COO | Israel | BrandName | Tool-Flo |
Shipping Info
Weight per item
0.0001
Name
Laydown Threading Indexable Inserts
FamilyName
IL-UNJ
BrandName
Tool-Flo
