| Inscribed Circle Diameter (IC) | 1/2″ | Insert Style | Laydown (LT) |
| Insert Length (INSL) | 0.866″ | Cutting Direction (HAND) | Right Hand |
| Thread Pitch (TP) | 1.5 mm | Tool Type | Threading Regular Inserts |
| Corner Radius (RE) | 0.0027″ | Measurement Type | Inch |
| Grade | AC22A | Body Material | Carbide |
| Coating | TiAlN | Number of Teeth | 1 |
| Cutting Edge Material | Carbide | Thread Form Type (THFT) | M60 |
| Application | | External Thread Milling | External Threading | Threading Inserts | | Unit | I |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Profile Distance EY (PDY) | 0.0906″ |
Product Features

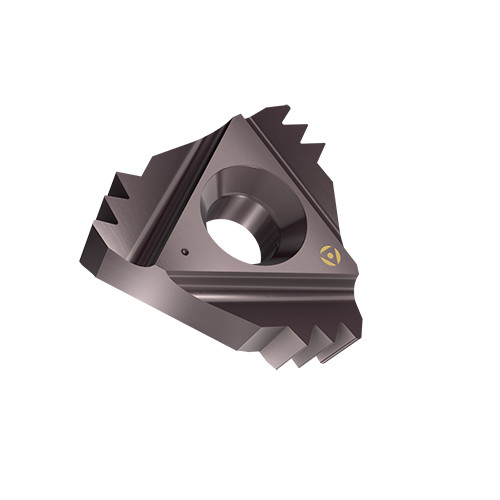

| Family Description | External Right Hand ISO Metric (DIN13 12-1986 class: 6g) 3-Tooth Laydown Threading Inserts for General Industries | FamilyName | ER-ISO-3M |
| COO | Israel | BrandName | Tool-Flo |
Shipping Info
Weight per item
0.0002
Name
Laydown Threading Indexable Inserts
FamilyName
ER-ISO-3M
BrandName
Tool-Flo
