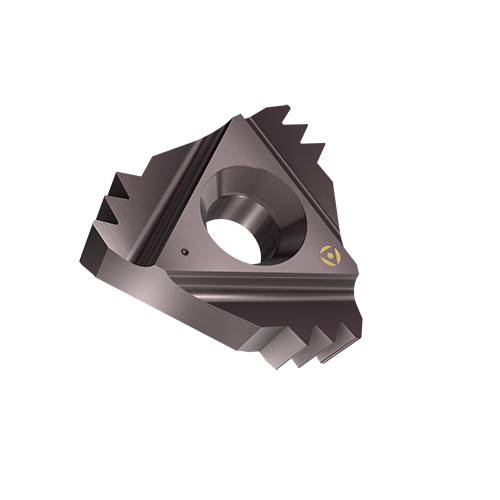

22ER 14W 3M AC22A
| Inscribed Circle Diameter (IC) | 1/2″ | Chip Breaker Type | Z |
| Insert Length (INSL) | 0.866″ | Shape | Triangle |
| Threads per Inch (TPI) | 14 | Cutting Item Count (CICT) | 1 |
| Corner Radius (RE) | 0.0083″ | Threads per Inch Minimum (TPIN) | 14 |
| Insert Thickness (S) | 0″ | Threads per Inch Maximum (TPIX) | 14 |
| Grade | AC22A | Tool Type | Threading Regular Inserts |
| Coating | TiAlN | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Cutting Position | External | Number of Teeth | 3 |
| Application | | External Thread Milling | External Threading | Threading Inserts | | Thread Form Type (THFT) | WH55 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Unit | I |
| Insert Style | Laydown (LT) | Profile Distance EY (PDY) | 0.1102″ |
| Cutting Direction (HAND) | Right Hand |
Product Features
| Family Description | External Right Hand Whitworth (BSW, BSF, BSP) B.S.84-1956 DIN 259 Medium Class Full Profile 3-Tooth Laydown Threading Inserts | FamilyName | ER-W-3M |
| COO | Israel | BrandName | Tool-Flo |
Shipping Info
Weight per item
0.0002
Name
Laydown Threading Indexable Inserts
FamilyName
ER-W-3M
BrandName
Tool-Flo
