| Inscribed Circle Diameter (IC) | 1/2″ | Chip Breaker Type | Z |
| Insert Length (INSL) | 0.866″ | Shape | Triangle |
| Thread Pitch (TP) | 0.079 mm | Cutting Item Count (CICT) | 1 |
| Threads per Inch (TPI) | 2 | Threads per Inch Minimum (TPIN) | 2 |
| Corner Radius (RE) | 0.0098″ | Threads per Inch Maximum (TPIX) | 2 |
| Insert Thickness (S) | 0″ | Tool Type | Threading Regular Inserts |
| Grade | AC22A | Measurement Type | Inch |
| Coating | TiAlN | Body Material | Carbide |
| Cutting Edge Material | Carbide | Number of Teeth | 2 |
| Cutting Position | External | Cutting Edge Length (L) | 0.866″ |
| Application | | External Thread Milling | External Threading | Threading Inserts | | Thread Form Type (THFT) | M60 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Unit | I |
| Insert Style | Laydown (LT) | Profile Distance EY (PDY) | 0.0787″ |
| Cutting Direction (HAND) | Right Hand |
Product Features
| Family Description | External Right Hand ISO Metric (DIN13 12-1986 class: 6g) 2-Tooth Laydown Threading Inserts for General Industries | FamilyName | ER-ISO-2M |
| COO | Israel | BrandName | Tool-Flo |
Shipping Info
Weight per item
0.0002
Name

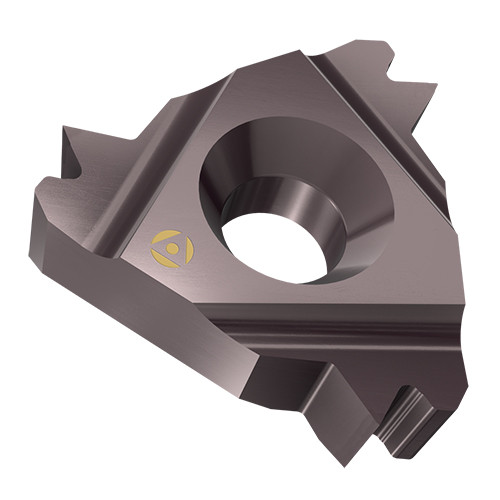

Laydown Threading Indexable Inserts
FamilyName
ER-ISO-2M
BrandName
Tool-Flo
