| Inscribed Circle Diameter (IC) | 1/2″ | Insert Style | Laydown (LT) |
| Insert Length (INSL) | 0.866″ | Cutting Direction (HAND) | Right Hand |
| Threads per Inch (TPI) | 11 | Tool Type | Threading Regular Inserts |
| Corner Radius (RE) | 0.0035″ | Measurement Type | Inch |
| Grade | AC22A | Body Material | Carbide |
| Coating | TiAlN | Number of Teeth | 1 |
| Cutting Edge Material | Carbide | Thread Form Type (THFT) | WH55 |
| Application | | Internal Thread Milling | Internal Threading lay down | Threading Inserts | | Unit | I |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Profile Distance EY (PDY) | 0.0906″ |
Product Features

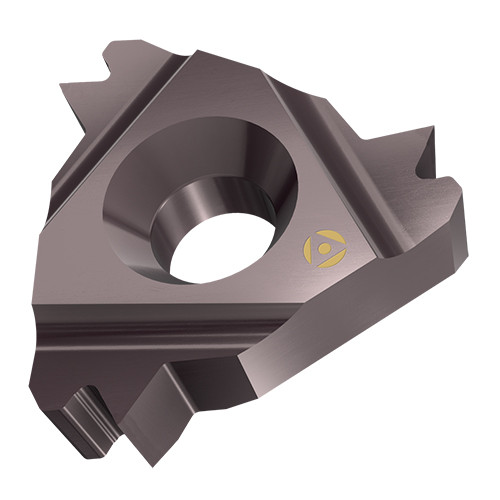

| Family Description | Internal Right Hand Whitworth (BSW, BSF, BSP) B.S.84-1956 DIN 259 Medium Class Full Profile 2-Tooth Laydown Threading Inserts | FamilyName | IR-W-2M |
| COO | Israel | BrandName | Tool-Flo |
Shipping Info
Weight per item
0.0002
Name
Laydown Threading Indexable Inserts
FamilyName
IR-W-2M
BrandName
Tool-Flo
