| Inscribed Circle Diameter (IC) | 1/2″ | Chip Breaker Type | Z |
| Insert Length (INSL) | 0.866″ | Shape | Triangle |
| Threads per Inch (TPI) | 16 | Cutting Item Count (CICT) | 1 |
| Corner Radius (RE) | 0.0027″ | Threads per Inch Minimum (TPIN) | 16 |
| Insert Thickness (S) | 0″ | Threads per Inch Maximum (TPIX) | 16 |
| Grade | AC22A | Tool Type | Threading Regular Inserts |
| Coating | TiAlN | Cutting Depth Maximum (CDX) | 0.866″ |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Cutting Position | Internal | Body Material | Carbide |
| Application | | Internal Thread Milling | Internal Threading lay down | Threading Inserts | | Number of Teeth | 3 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Thread Form Type (THFT) | UN60 |
| Insert Style | Laydown (LT) | Unit | I |
| Cutting Direction (HAND) | Right Hand | Profile Distance EY (PDY) | 0.0984″ |
Product Features
| Family Description | Internal Right Hand American UN Full Profile (UN, UNC, UNF, UNEF) 3-Tooth Laydown Threading Inserts for Gen. Industries | FamilyName | IR-UN-3M |
| COO | Israel | BrandName | Tool-Flo |
Shipping Info
Weight per item
0.0002
Name

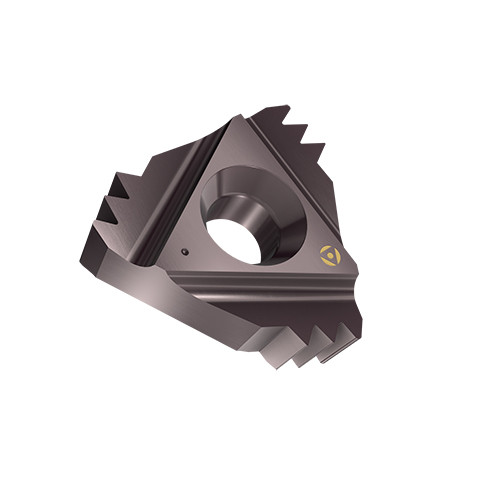

Laydown Threading Indexable Inserts
FamilyName
IR-UN-3M
BrandName
Tool-Flo
