| Inscribed Circle Diameter (IC) | 3/8″ | Chip Breaker Type | B |
| Insert Length (INSL) | 0.649″ | Shape | Triangle |
| Threads per Inch (TPI) | 10 | Threads per Inch Minimum (TPIN) | 8 |
| Corner Radius (RE) | 0.0091″ | Threads per Inch Maximum (TPIX) | 14 |
| Insert Thickness (S) | 0″ | Thread Pitch Minimum (TPN) | 1.75 mm |
| Grade | AC22A | Thread Pitch Maximum (TPX) | 0.118 mm |
| Coating | TiAlN | Tool Type | Threading Regular Inserts |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Cutting Position | External | Body Material | Carbide |
| Application | | External Thread Milling | External Threading | Threading Inserts | | Number of Teeth | 1 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Thread Form Type (THFT) | VP55 |
| Insert Style | Laydown (LT) | Unit | I |
| Cutting Direction (HAND) | Right Hand | Profile Distance EY (PDY) | 0.0472″ |
Product Features

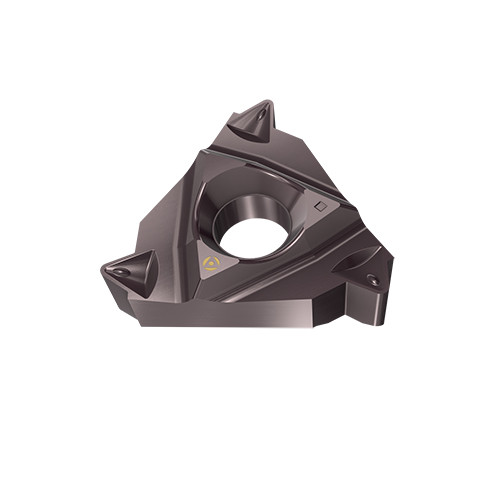

| Family Description | External Right Hand Laydown Threading Inserts with a 55° Partial Profile for General Industries with Chip Control | FamilyName | ER-55-CB |
| COO | Israel | BrandName | Tool-Flo |
Shipping Info
Weight per item
0.0001
Name
Laydown Threading Indexable Inserts
FamilyName
ER-55-CB
BrandName
Tool-Flo
