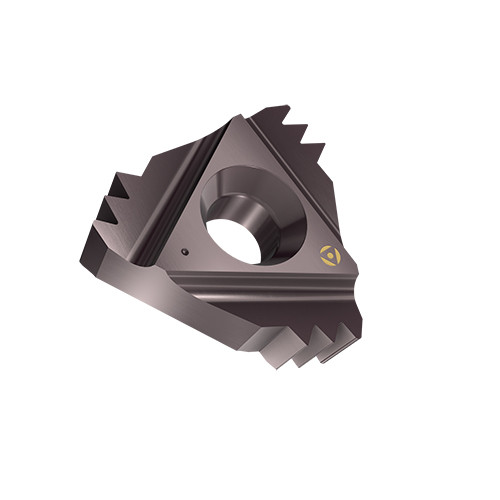

27ER 11.5 NPT 3M AC22D
| Inscribed Circle Diameter (IC) | 5/8″ | Cutting Direction (HAND) | Right Hand |
| Insert Length (INSL) | 1.08″ | Shape | 60° Triangle |
| Threads per Inch (TPI) | 11.5 | Cutting Item Count (CICT) | 0 |
| Corner Radius (RE) | 0″ | Threads per Inch Minimum (TPIN) | 11.5 |
| Grade | AC22D | Threads per Inch Maximum (TPIX) | 11.5 |
| Coating | TiAlN | Tool Type | Threading Regular Inserts |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Application | | External Thread Milling | External Threading | Threading Inserts | | Body Material | Carbide |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Unit | I |
| Insert Style | Laydown (LT) |
Product Features
| Family Description | External Right Hand NPT (National Pipe Threads) Full Profile3-Tooth Laydown Thread.Inserts for Steam,Gas and Water Pipes | FamilyName | ER-NPT-3M |
| COO | USA | BrandName | Tool-Flo |
Shipping Info
Weight per item
0.0011
Name
Laydown Threading Indexable Inserts
FamilyName
ER-NPT-3M
BrandName
Tool-Flo
