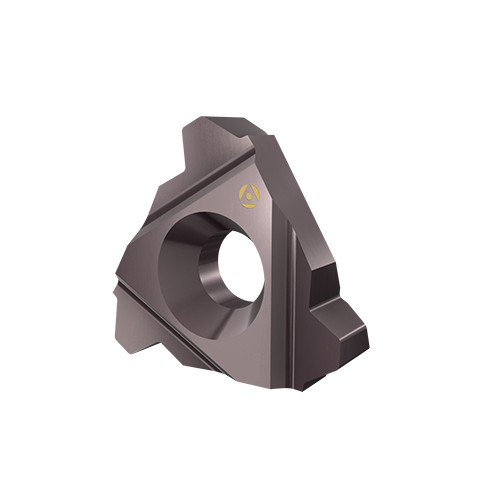

16IR 12SLB AC50C
Internal Right Hand API Slimline Buttress Profile Laydown Threading Inserts
| Inscribed Circle Diameter (IC) | 3/8″ | Cutting Direction (HAND) | Right Hand |
| Insert Length (INSL) | 0.63″ | Shape | 60° Triangle |
| Threads per Inch (TPI) | 12 | Threads per Inch Minimum (TPIN) | 12 |
| Insert Thickness (S) | 0.189″ | Threads per Inch Maximum (TPIX) | 12 |
| Grade | AC50C | Tool Type | Threading Regular Inserts |
| Coating | TiAlN | Measurement Type | Inch |
| Application | | Int Threading Laydown | | Body Material | Carbide |
| Insert Style | Laydown (LT) | Unit | I |
Product Features
| Family Description | Internal Right Hand API Slimline Buttress Profile Laydown Threading Inserts | FamilyName | IR-SLB |
| COO | USA | BrandName | Tool-Flo |
Shipping Info
Weight per item
0.0003
Name
Laydown Threading Indexable Inserts
FamilyName
IR-SLB
BrandName
Tool-Flo
