| Inscribed Circle Diameter (IC) | 1/2″ | Cutting Direction (HAND) | Left Hand |
| Insert Length (INSL) | 0.87″ | Chip Breaker Type | HCB |
| Threads per Inch (TPI) | 6 | Shape | 60° Triangle |
| Corner Radius (RE) | 0″ | Threads per Inch Minimum (TPIN) | 6 |
| Insert Thickness (S) | 0.252″ | Threads per Inch Maximum (TPIX) | 6 |
| Cutting Width (CW) | 0.065″ | Tool Type | Threading Regular Inserts |
| Grade | AC50C | Measurement Type | Inch |
| Coating | TiAlN | Body Material | Carbide |
| Application | | Ext Threading Laydown | | Unit | I |
| Insert Style | Laydown (LT) | Profile Distance EY (PDY) | 0″ |
Product Features

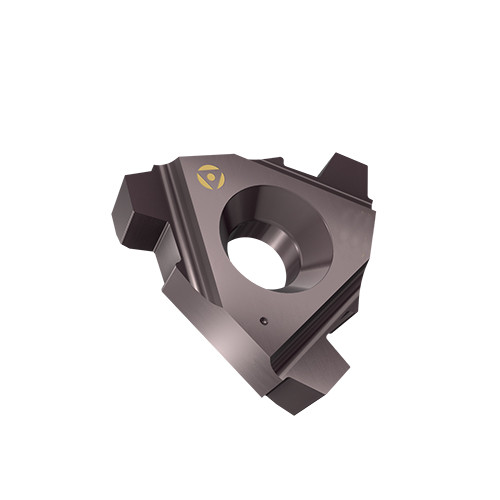

| Family Description | External Left Hand STUB ACME Partial Cresting Laydown Threading Inserts | FamilyName | EL-STACME-PT |
| COO | USA | BrandName | Tool-Flo |
Shipping Info
Weight per item
0.0004
Name
Laydown Threading Indexable Inserts
FamilyName
EL-STACME-PT
BrandName
Tool-Flo
