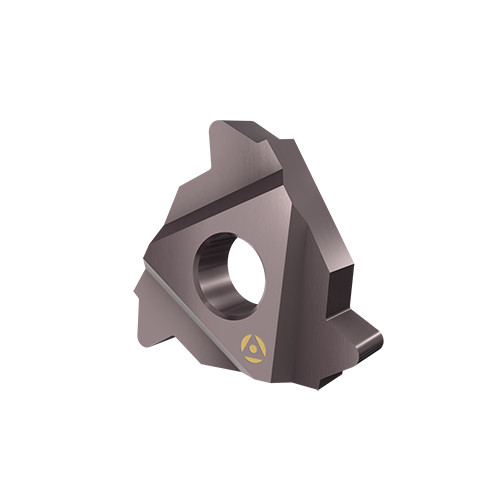

L53 530 INT AC50F
Inetrnal Right Hand Rotary Shoulder Connection Full Profile L-Style Single-Sided Laydown Threading Inserts
| Inscribed Circle Diameter (IC) | 5/8″ | Chip Breaker Type | HCB |
| Threads per Inch (TPI) | 5 | Shape | 60° Triangle |
| Corner Radius (RE) | 0.02″ | Threads per Inch Minimum (TPIN) | 5 |
| Insert Thickness (S) | 0.252″ | Threads per Inch Maximum (TPIX) | 5 |
| Grade | AC50F | Tool Type | Threading Regular Inserts |
| Coating | TiAlN | Measurement Type | Inch |
| Application | | Int Ext Threading Laydown | | Body Material | Carbide |
| Insert Style | Laydown (L) | Unit | I |
Product Features
| Family Description | Inetrnal Right Hand Rotary Shoulder Connection Full Profile L-Style Single-Sided Laydown Threading Inserts | FamilyName | L-RSC-I |
| COO | USA | BrandName | Tool-Flo |
Shipping Info
Weight per item
0.0009
Name
Laydown Threading Indexable Inserts
FamilyName
L-RSC-I
BrandName
Tool-Flo
