| Inscribed Circle Diameter (IC) | 3/8″ | Insert Style | Laydown (LT) |
| Insert Length (INSL) | 0.649″ | Threads per Inch Minimum (TPIN) | 10 |
| Threads per Inch (TPI) | 10 | Threads per Inch Maximum (TPIX) | 10 |
| Corner Radius (RE) | 0.014″ | Tool Type | Threading Regular Inserts |
| Grade | AC50C | Measurement Type | Inch |
| Coating | TiAlN | Body Material | Carbide |
| Cutting Edge Material | Carbide | Number of Teeth | 1 |
| Application | | Ext Threading Laydown | | Unit | I |
| Applicable Material | | Steel | Stainless Steel | | Profile Distance EY (PDY) | 0.04″ |
Product Features
| Family Description | External Right Hand API Round Profile Laydown Threading Inserts with Chip Control | FamilyName | ER-API-RD-CB |
| COO | USA | BrandName | Tool-Flo |
Shipping Info
Weight per item
0.0003
Name

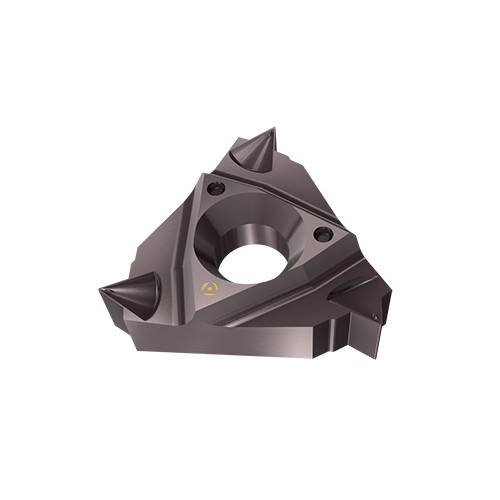

Laydown Threading Indexable Inserts
FamilyName
ER-API-RD-CB
BrandName
Tool-Flo
