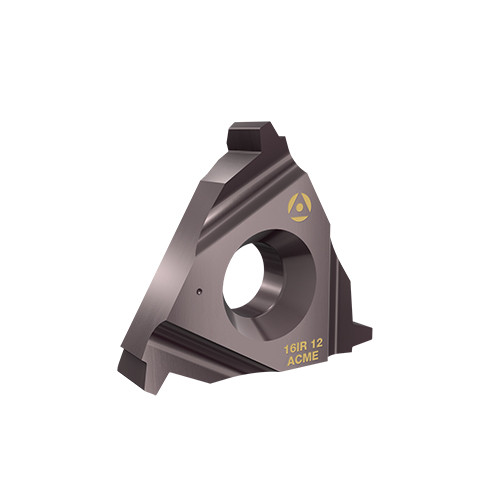

16IR 12ACME C22
Internal Right Hand ACME Profile Laydown Threading Inserts for Feed Screws
| Inscribed Circle Diameter (IC) | 3/8″ | Insert Style | Laydown (LT) |
| Insert Length (INSL) | 0.63″ | Cutting Direction (HAND) | Right Hand |
| Threads per Inch (TPI) | 12 Threads/" | Shape | Triangle |
| Grade | C22 | Tool Type | Threading Regular Inserts |
| Coating | Uncoated | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Application | | Internal Thread Milling | Internal Threading lay down | Threading Inserts | | Thread Form Type (THFT) | AC29 |
| Applicable Material | | Stainless Steel | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Unit | I |
Product Features
| Family Description | Internal Right Hand ACME Profile Laydown Threading Inserts for Feed Screws | FamilyName | IR-ACME |
| COO | Israel | BrandName | Tool-Flo |
Shipping Info
Weight per item
0.0000
Name
Laydown Threading Indexable Inserts
FamilyName
IR-ACME
BrandName
Tool-Flo
