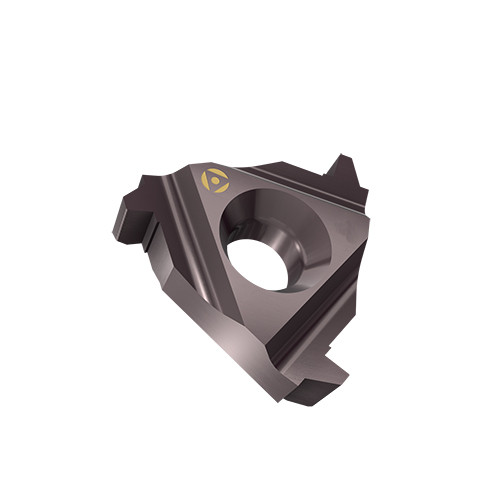

16EL 2SAGE AC22A
External Left Hand Laydown Threading Inserts with Sagengenwinde (DIN 513) Thread Application for High Force inOne Direction
| Inscribed Circle Diameter (IC) | 3/8″ | Cutting Direction (HAND) | Left Hand |
| Insert Length (INSL) | 0.649″ | Shape | 60° Triangle |
| Thread Pitch (TP) | 0.079 mm | Tool Type | Threading Regular Inserts |
| Grade | AC22A | Measurement Type | Inch |
| Coating | TiAlN | Body Material | Carbide |
| Cutting Edge Material | Carbide | Thread Form Type (THFT) | SAGE |
| Application | | External Thread Milling | External Threading | Threading Inserts | | Unit | I |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Profile Distance EY (PDY) | 0.04″ |
| Insert Style | Laydown (LT) |
Product Features
| Family Description | External Left Hand Laydown Threading Inserts with Sagengenwinde (DIN 513) Thread Application for High Force inOne Direction | FamilyName | EL-SAGE |
| COO | Israel | BrandName | Tool-Flo |
Shipping Info
Weight per item
0.0000
Name
Laydown Threading Indexable Inserts
FamilyName
EL-SAGE
BrandName
Tool-Flo
