| Inscribed Circle Diameter (IC) | 1/2″ | Insert Style | Laydown (LT) |
| Insert Length (INSL) | 0.866″ | Cutting Direction (HAND) | U-Type |
| Thread Pitch (TP) | 6 mm | Tool Type | Threading Regular Inserts |
| Corner Radius (RE) | 0.0157″ | Measurement Type | Inch |
| Grade | AC22A | Body Material | Carbide |
| Coating | TiAlN | Thread Form Type (THFT) | TR30 |
| Cutting Edge Material | Carbide | Unit | I |
| Application | | External Thread Milling | External Threading | Threading Inserts | | Profile Distance EY (PDY) | 0.0787″ |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
Product Features

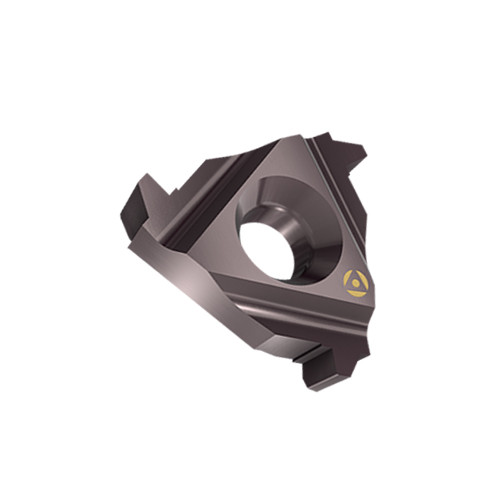

| Family Description | External U-Style Trapeze Shaped DIN 103 Laydown Threading Inserts for Feed Screws | FamilyName | UE-TR |
| COO | Israel | BrandName | Tool-Flo |
Shipping Info
Weight per item
0.0000
Name
Laydown Threading Indexable Inserts
FamilyName
UE-TR
BrandName
Tool-Flo
