| Inscribed Circle Diameter (IC) | 1/2″ | Insert Style | Laydown (LT) |
| Insert Length (INSL) | 0.866″ | Threads per Inch Minimum (TPIN) | 0 |
| Thread Pitch (TP) | 1.5 mm | Threads per Inch Maximum (TPIX) | 0 |
| Threads per Inch (TPI) | 0 | Tool Type | Threading Regular Inserts |
| Corner Radius (RE) | 0.0043″ | Measurement Type | Inch |
| Grade | GP50A | Body Material | Carbide |
| Coating | TiN | Number of Teeth | 3 |
| Cutting Edge Material | Carbide | Thread Form Type (THFT) | M60 |
| Application | | Internal Thread Milling | Internal Threading lay down | Threading Inserts | | Unit | I |
| Applicable Material | | Steel | Stainless Steel | | Profile Distance EY (PDY) | 0″ |
Product Features
| Family Description | Internal Right Hand ISO Metric (DIN13 12-1986 class 6H) 3-Tooth Laydown Threading Inserts for General Industries | FamilyName | IR-ISO-3M |
| COO | Israel | BrandName | Tool-Flo |
Shipping Info
Weight per item
0.0000
Name

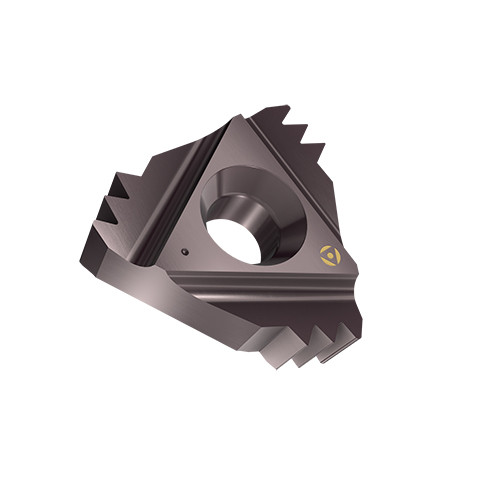

Laydown Threading Indexable Inserts
FamilyName
IR-ISO-3M
BrandName
Tool-Flo
