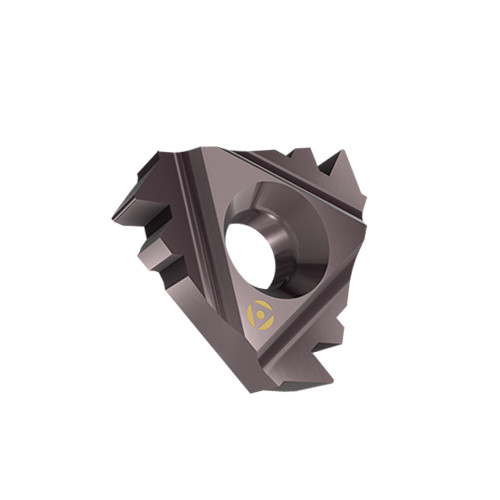

22UIR 4ABUT AC22A
Internal Right Hand U-Style American Buttress Laydown Threading Inserts for High Force Transmission in One in One Direction
| Inscribed Circle Diameter (IC) | 1/2″ | Insert Style | Laydown (LT) |
| Insert Length (INSL) | 0.87″ | Cutting Direction (HAND) | Right Hand |
| Threads per Inch (TPI) | 4 | Chip Breaker Type | Z |
| Corner Radius (RE) | 0.0161″ | Shape | Triangle |
| Grade | AC22A | Tool Type | Threading Regular Inserts |
| Coating | TiAlN | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Application | | Internal Thread Milling | Internal Threading lay down | Threading Inserts | | Thread Form Type (THFT) | ABUT |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Unit | I |
Product Features
| Family Description | Internal Right Hand U-Style American Buttress Laydown Threading Inserts for High Force Transmission in One in One Direction | FamilyName | UIR-ABUT |
| COO | Israel | BrandName | Tool-Flo |
Shipping Info
Weight per item
0.0000
Name
Laydown Threading Indexable Inserts
FamilyName
UIR-ABUT
BrandName
Tool-Flo
