| Inscribed Circle Diameter (IC) | 1/2″ | Chip Breaker Type | Z |
| Insert Length (INSL) | 0.866″ | Shape | Triangle |
| Threads per Inch (TPI) | 5 | Threads per Inch Minimum (TPIN) | 0 |
| Corner Radius (RE) | 0.0059″ | Threads per Inch Maximum (TPIX) | 0 |
| Insert Thickness (S) | 0″ | Tool Type | Threading Regular Inserts |
| Grade | AC22A | Measurement Type | Inch |
| Coating | TiAlN | Body Material | Carbide |
| Cutting Edge Material | Carbide | Number of Teeth | 1 |
| Cutting Position | Internal | Cutting Edge Length (L) | 0″ |
| Application | | Internal Thread Milling | Internal Threading lay down | Threading Inserts | | Thread Form Type (THFT) | AC29 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Unit | I |
| Insert Style | Laydown (LT) | Profile Distance EY (PDY) | 0.0709″ |
| Cutting Direction (HAND) | Left Hand |
Product Features

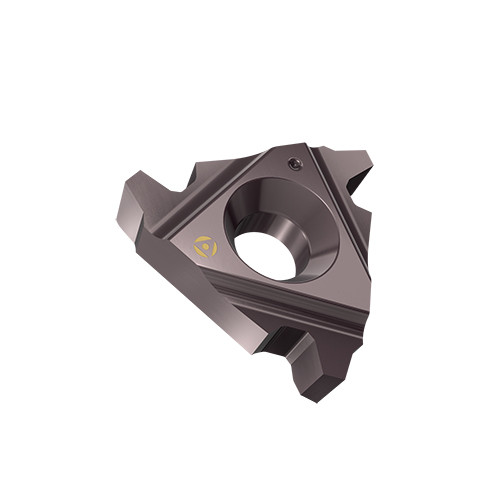

| Family Description | Internal Left Hand ACME Profile Laydown Threading Inserts for Feed Screws | FamilyName | IL-ACME |
| COO | Israel | BrandName | Tool-Flo |
Shipping Info
Weight per item
0.0000
Name
Laydown Threading Indexable Inserts
FamilyName
IL-ACME
BrandName
Tool-Flo
