| Inscribed Circle Diameter (IC) | 3/8″ | Chip Breaker Type | B |
| Insert Length (INSL) | 0.649″ | Shape | Triangle |
| Threads per Inch (TPI) | 14 | Threads per Inch Minimum (TPIN) | 0 |
| Corner Radius (RE) | 0.0094″ | Threads per Inch Maximum (TPIX) | 0 |
| Insert Thickness (S) | 0″ | Tool Type | Threading Regular Inserts |
| Grade | TC22A | Measurement Type | Inch |
| Coating | TiAlN+TiN | Body Material | Carbide |
| Cutting Edge Material | Carbide | Number of Teeth | 1 |
| Cutting Position | External | Cutting Edge Length (L) | 0.649″ |
| Application | | External Thread Milling | External Threading | Threading Inserts | | Thread Form Type (THFT) | BSPT55 |
| Applicable Material | | Steel | Stainless Steel | Hard Materials | Super-Alloys / Titanium | | Unit | I |
| Insert Style | Laydown (LT) | Profile Distance EY (PDY) | 0.0394″ |
| Cutting Direction (HAND) | Right Hand |
Product Features
| Family Description | External Right Hand BSPT (British Standard Pipe) B.S.21-1957Full Profile Laydown Threading Inserts with Chip Control | FamilyName | ER-BSPT-CB |
| COO | Israel | BrandName | Tool-Flo |
Shipping Info
Weight per item
0.0000
Name

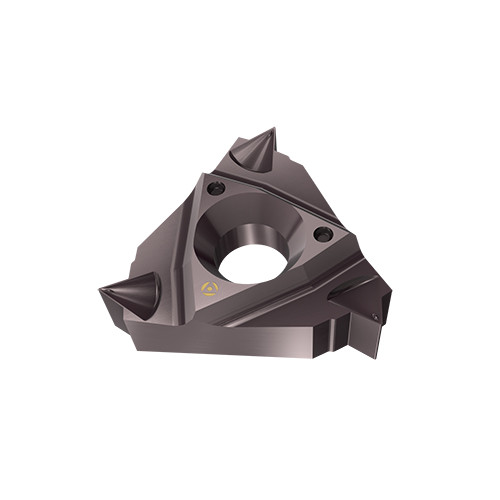

Laydown Threading Indexable Inserts
FamilyName
ER-BSPT-CB
BrandName
Tool-Flo
