16EL 8RD DIN405 GP50A

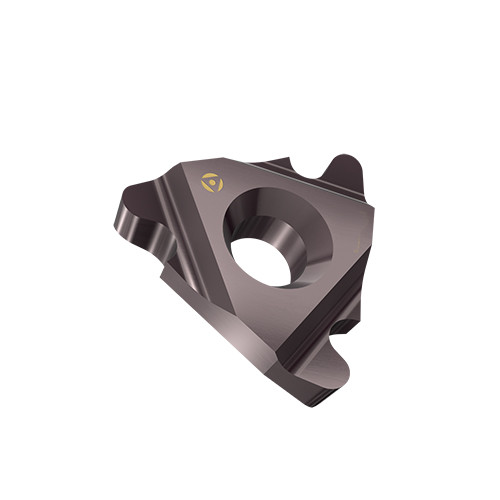

External Left Hand DIN 405 Round Laydown Threading Inserts for Fire Fighting and Food Industries Pipe Couplings
| Inscribed Circle Diameter (IC) | 3/8″ | Cutting Direction (HAND) | Left Hand |
| Insert Length (INSL) | 0.649″ | Shape | 60° Triangle |
| Threads per Inch (TPI) | 8 Threads/" | Threads per Inch Minimum (TPIN) | 8 Threads/" |
| Corner Radius (RE) | 0.0299″ | Threads per Inch Maximum (TPIX) | 8 Threads/" |
| Insert Thickness (S) | 0.189″ | Tool Type | Threading Regular Inserts |
| Grade | GP50A | Measurement Type | Inch |
| Coating | TiN | Body Material | Carbide |
| Cutting Edge Material | Carbide | Thread Form Type (THFT) | VP60 |
| Application | | External Thread Milling | External Threading | Threading Inserts | | Unit | I |
| Applicable Material | | Steel | Stainless Steel | | Profile Distance EY (PDY) | 0.06″ |
| Insert Style | Laydown (LT) |
Product Features
| Family Description | External Left Hand DIN 405 Round Laydown Threading Inserts for Fire Fighting and Food Industries Pipe Couplings | FamilyName | EL-RND |
| COO | Israel | BrandName | Tool-Flo |
Shipping Info
Weight per item
0.0000
Name
Laydown Threading Indexable Inserts
FamilyName
EL-RND
BrandName
Tool-Flo
