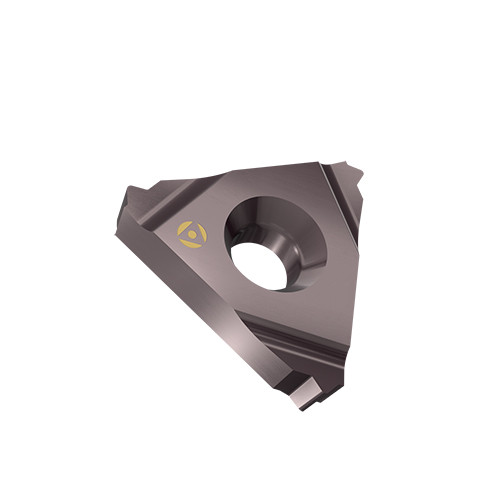

16IL 16PG AC22A
Internal Left Hand PG Thread Profile Laydown Threading Inserts for Electrical Industries
| Inscribed Circle Diameter (IC) | 3/8″ | Cutting Direction (HAND) | Left Hand |
| Insert Length (INSL) | 0.63″ | Shape | 60° Triangle |
| Threads per Inch (TPI) | 16 | Threads per Inch Minimum (TPIN) | 16 |
| Grade | AC22A | Threads per Inch Maximum (TPIX) | 16 |
| Coating | TiAlN | Tool Type | Threading Regular Inserts |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Application | | Internal Thread Milling | Internal Threading lay down | Threading Inserts | | Body Material | Carbide |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Unit | I |
| Insert Style | Laydown (LT) |
Product Features
| Family Description | Internal Left Hand PG Thread Profile Laydown Threading Inserts for Electrical Industries | FamilyName | IL-PG |
| COO | Israel | BrandName | Tool-Flo |
Shipping Info
Weight per item
0.0000
Name
Laydown Threading Indexable Inserts
FamilyName
IL-PG
BrandName
Tool-Flo
