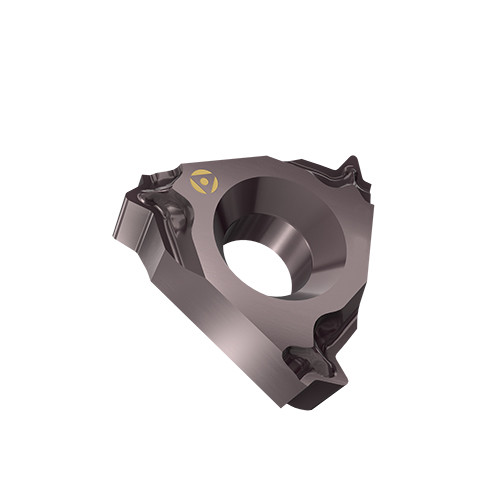

16EL 11W GP50A
External Left Hand Whitworth (BSW, BSF, BSP) B.S.84-1956 DIN 259 Medium Class Full Profile Laydown Threading Inserts
| Inscribed Circle Diameter (IC) | 3/8″ | Chip Breaker Type | Z |
| Insert Length (INSL) | 0.649″ | Shape | 60° Triangle |
| Threads per Inch (TPI) | 11 Threads/" | Cutting Item Count (CICT) | 1 |
| Corner Radius (RE) | 0.0114″ | Threads per Inch Minimum (TPIN) | 11 Threads/" |
| Grade | GP50A | Threads per Inch Maximum (TPIX) | 11 Threads/" |
| Coating | TiN | Tool Type | Threading Regular Inserts |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Application | | External Thread Milling | External Threading | Threading Inserts | | Body Material | Carbide |
| Applicable Material | | Steel | Stainless Steel | | Thread Form Type (THFT) | WH55 |
| Insert Style | Laydown (LT) | Unit | I |
| Cutting Direction (HAND) | Left Hand | Profile Distance EY (PDY) | 0.04″ |
Product Features
| Family Description | External Left Hand Whitworth (BSW, BSF, BSP) B.S.84-1956 DIN 259 Medium Class Full Profile Laydown Threading Inserts | FamilyName | EL-W |
| COO | Israel | BrandName | Tool-Flo |
Shipping Info
Weight per item
0.0000
Name
Laydown Threading Indexable Inserts
FamilyName
EL-W
BrandName
Tool-Flo
