| Inscribed Circle Diameter (IC) | 3/8″ | Chip Breaker Type | Z |
| Insert Length (INSL) | 0.649″ | Shape | Triangle |
| Threads per Inch (TPI) | 8 | Cutting Item Count (CICT) | 1 |
| Corner Radius (RE) | 0.0043″ | Threads per Inch Minimum (TPIN) | 8 |
| Insert Thickness (S) | 0″ | Threads per Inch Maximum (TPIX) | 8 |
| Grade | GP50A | Tool Type | Threading Regular Inserts |
| Coating | TiN | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Cutting Position | Internal | Number of Teeth | 1 |
| Application | | Internal Thread Milling | Internal Threading lay down | Threading Inserts | | Thread Form Type (THFT) | NPT60 |
| Applicable Material | | Steel | Stainless Steel | | Unit | I |
| Insert Style | Laydown (LT) | Profile Distance EY (PDY) | 0.0512″ |
| Cutting Direction (HAND) | Left Hand |
Product Features

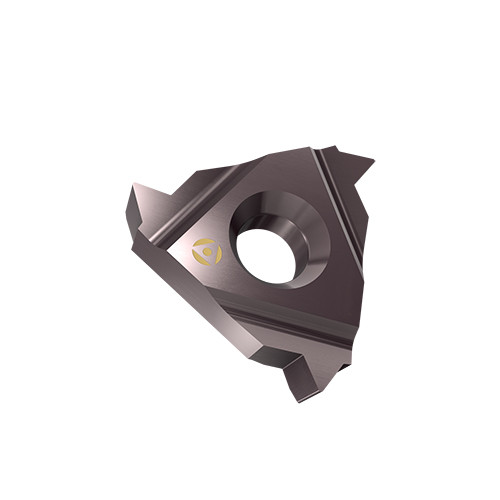

| Family Description | Internal Left Hand NPT (National Pipe Threads) Full Profile Laydown Threading Inserts for Steam, Gas and Water Pipes | FamilyName | IL-NPT |
| COO | Israel | BrandName | Tool-Flo |
Shipping Info
Weight per item
0.0000
Name
Laydown Threading Indexable Inserts
FamilyName
IL-NPT
BrandName
Tool-Flo
