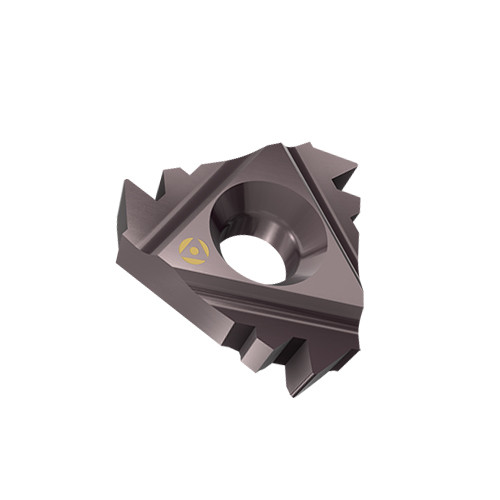

22UER 4ABUT GP50A
External Right Hand U-Style American Buttress Laydown Threading Inserts for High Force Transmission in One Direction
| Inscribed Circle Diameter (IC) | 1/2″ | Cutting Direction (HAND) | Right Hand |
| Insert Length (INSL) | 0.87″ | Shape | 60° Triangle |
| Threads per Inch (TPI) | 4 Threads/" | Threads per Inch Minimum (TPIN) | 4 Threads/" |
| Corner Radius (RE) | 0.0161″ | Threads per Inch Maximum (TPIX) | 4 Threads/" |
| Grade | GP50A | Tool Type | Threading Regular Inserts |
| Coating | TiN | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Application | | External Thread Milling | External Threading | Threading Inserts | | Thread Form Type (THFT) | ABUT |
| Applicable Material | | Steel | Stainless Steel | | Unit | I |
| Insert Style | Laydown (LT) |
Product Features
| Family Description | External Right Hand U-Style American Buttress Laydown Threading Inserts for High Force Transmission in One Direction | FamilyName | UER-ABUT |
| COO | Israel | BrandName | Tool-Flo |
Shipping Info
Weight per item
0.0220
Name
Laydown Threading Indexable Inserts
FamilyName
UER-ABUT
BrandName
Tool-Flo
