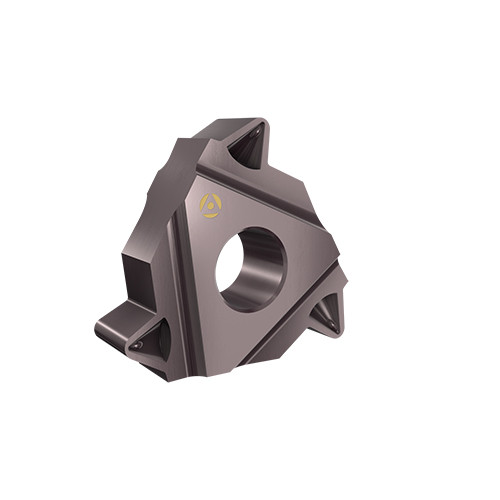

LDS 54 425-CB #3 AC54F
Internal and External Rotary Shoulder Connection Threading L-Style Double Sided Laydown Inserts w/ chip breaker
| Inscribed Circle Diameter (IC) | 5/8″ | Shape | 60° Triangle |
| Threads per Inch (TPI) | 4 Threads/" | Pitch External | 4″ |
| Corner Radius (RE) | 0.025″ | Threads per Inch Minimum (TPIN) | 4 Threads/" |
| Insert Thickness (S) | 0.252″ | Threads per Inch Maximum (TPIX) | 4 Threads/" |
| Grade | AC54F | Tool Type | Threading Regular Inserts |
| Application | | Int Ext Threading Laydown | | Measurement Type | Inch |
| Insert Style | Laydown (L) | Body Material | Carbide |
| Chip Breaker Type | CB | Unit | I |
Product Features
| Family Description | Internal and External Rotary Shoulder Connection Threading L-Style Double Sided Laydown Inserts w/ chip breaker | FamilyName | LDS RSC CB |
| COO | USA | BrandName | Tool-Flo |
Shipping Info
Weight per item
0.0011
Name
Laydown Threading Indexable Inserts
FamilyName
LDS RSC CB
BrandName
Tool-Flo
