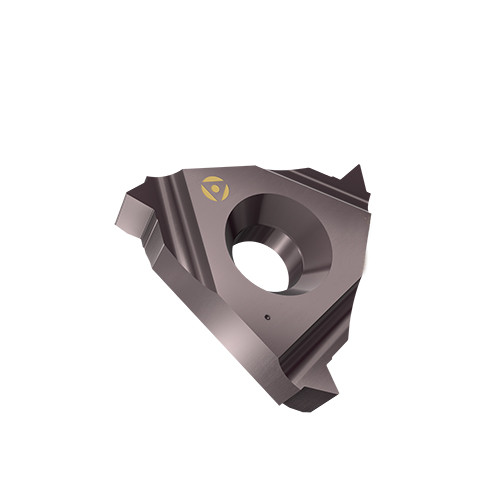

16EL 8NPT AC22A
External Left Hand NPT (National Pipe Threads) Full Profile Laydown Threading Inserts for Steam, Gas and Water Pipes
| Inscribed Circle Diameter (IC) | 3/8″ | Cutting Direction (HAND) | Left Hand |
| Insert Length (INSL) | 0.649″ | Shape | 60° Triangle |
| Threads per Inch (TPI) | 8 Threads/" | Cutting Item Count (CICT) | 1 |
| Corner Radius (RE) | 0.0047″ | Threads per Inch Minimum (TPIN) | 8 Threads/" |
| Grade | AC22A | Threads per Inch Maximum (TPIX) | 8 Threads/" |
| Coating | TiAlN | Tool Type | Threading Regular Inserts |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Application | | External Thread Milling | External Threading | Threading Inserts | | Body Material | Carbide |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Unit | I |
| Insert Style | Laydown (LT) | Profile Distance EY (PDY) | 0.05″ |
Product Features
| Family Description | External Left Hand NPT (National Pipe Threads) Full Profile Laydown Threading Inserts for Steam, Gas and Water Pipes | FamilyName | EL-NPT |
| COO | USA | BrandName | Tool-Flo |
Shipping Info
Weight per item
0.0000
Name
Laydown Threading Indexable Inserts
FamilyName
EL-NPT
BrandName
Tool-Flo
