| Connection Diameter Machine Side (DCONMS) | 16 mm | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 15 mm | Tool Type | BORING BAR |
| Shank Size (SS) | 16 | Measurement Type | Metric |
| Coolant Supply Property (CSP) | External | Reduced Body Diameter Length (LDRED) | 32 mm |
| Cutting Direction (HAND) | Left Hand | Body Diameter Reduced (BDRED) | 13 mm |
| Application | | Int. Grooving | Internal Thread Turning | Internal Threading lay down | | Unit | M |
| Functional Width (WF) | 8.9 mm | Functional Length (LF) | 140 mm |
Product Features
| Family Description | Internal Left Hand Threading Bars for IL Laydown Inserts | FamilyName | SIL |
| COO | Israel | BrandName | Tool-Flo |
Shipping Info
Weight per item
0.1990
Name

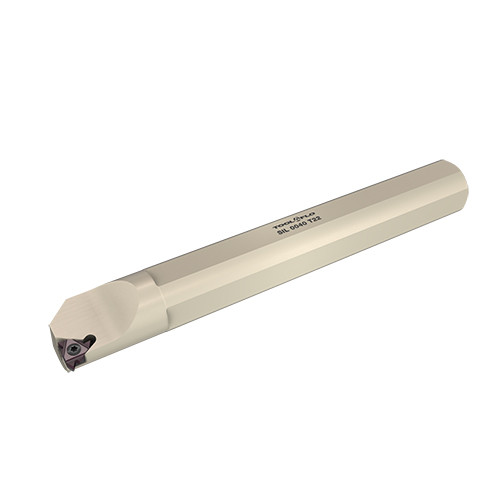

Laydown Threading Indexable Holders
FamilyName
SIL
BrandName
Tool-Flo
