| Connection Diameter Machine Side (DCONMS) | 2″ | Insert to Shank Reference | 1″ |
| Minimum Bore Diameter (DMIN) | 2″ | Body Material | Steel |
| Head Length (LH) | 3-3/4″ | Cutting Depth Maximum (CDX) | 0.15″ |
| Overall Length (OAL) | 14″ | Measurement Type | Inch |
| Cutting Direction (HAND) | Right Hand | Reduced Body Diameter Length (LDRED) | 3-3/4″ |
| Application | | Int Threading Laydown | | Unit | I |
| Functional Width (WF) | 1″ |
Product Features
| Family Description | Internal Right Hand Threading Bars for L# Laydown Inserts | FamilyName | LNFR |
| COO | USA | BrandName | Tool-Flo |
Shipping Info
Weight per item
0.0000
Name

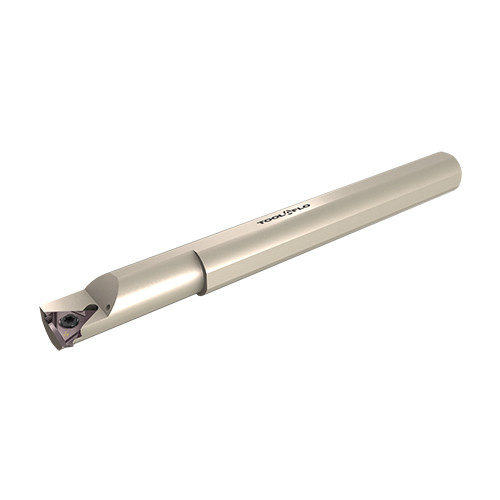

Laydown Threading Indexable Holders
FamilyName
LNFR
BrandName
Tool-Flo
