| Thread Size | M8; =>10 | Flute Helix Angle (FHA) | 15 Degrees |
| Thread Pitch (TP) | 1.25 mm | Cutting Edge Material | Carbide |
| Threads per Inch (TPI) | 0 | Cutting Position | Internal |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Measurement Type | Metric |
| Cutting Diameter (DC) | 5 mm | Grade | AC22 |
| Overall Length (OAL) | 58 mm | Depth of Cut Maximum (APMX) | 19.4 mm |
| Flute Count (NOF) | 3 | Corner Chamfer Width (CHW) | 0 mm |
| Coolant Supply Property (CSP) | External | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Body Material | Carbide |
| Coating | TiAlN | Connection Code Machine Side (CCMS) | Cylindrical |
| Application | | Internal Thread Milling | | Thread Form Type (THFT) | M60 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Unit | M |
Product Features

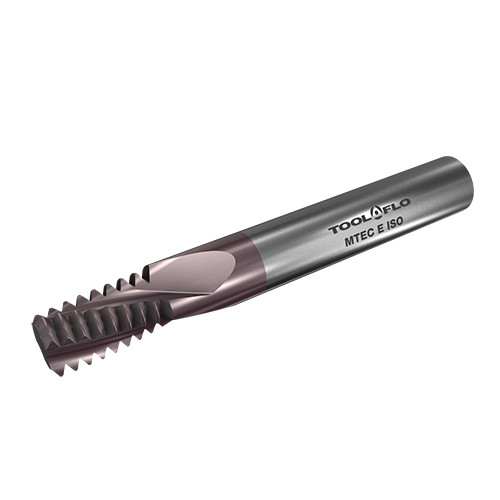

| Family Description | Solid carbide internal threading endmills used for ISO thread profile. | COO | Israel |
Shipping Info
Weight per item
0.0000
