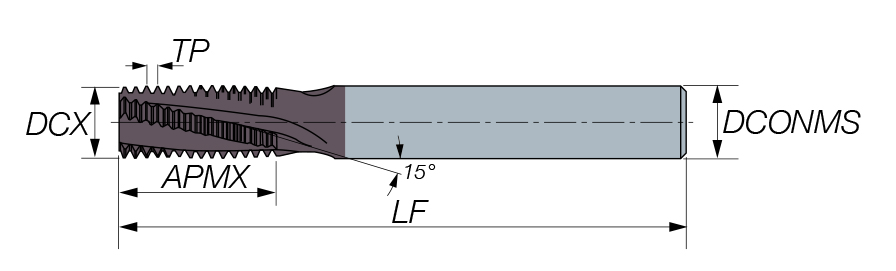

| Thread Size | 0 | Flute Helix Angle (FHA) | 15 Degrees |
| Thread Pitch (TP) | 0 mm | Cutting Edge Material | Carbide |
| Threads per Inch (TPI) | 14 | Cutting Position | Internal |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | Measurement Type | Inch |
| Cutting Diameter (DC) | 0.59″ | Grade | AC22 |
| Overall Length (OAL) | 4″ | Depth of Cut Maximum (APMX) | 1-1/2″ |
| Flute Count (NOF) | 5 | Corner Chamfer Width (CHW) | 0″ |
| Coolant Supply Property (CSP) | External | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Body Material | Carbide |
| Coating | TiAlN | Connection Code Machine Side (CCMS) | Cylindrical |
| Application | | Internal Thread Milling | | Thread Form Type (THFT) | UN60 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Unit | I |
Product Features
| Family Description | Solid Carbide Threading Endmills used for Internal UN ThreadProfile | COO | Israel |
Shipping Info
Weight per item
0.0012
