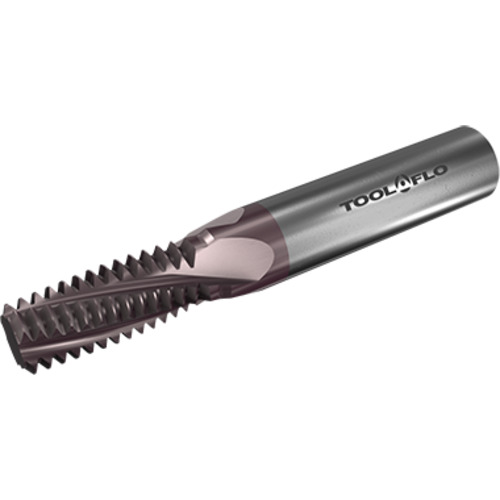

MTEC 1212D19 14BSPT AC2 AC22
Solid Carbide Threading Endmills for External or Internal BSPT Thread Profile
| Thread Size | RC1/2,RC7/8 | Flute Helix Angle (FHA) | 15 Degrees |
| Thread Pitch (TP) | 1.814 mm | Cutting Edge Material | Carbide |
| Threads per Inch (TPI) | 14 Threads/" | Cutting Position | BOTH |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Measurement Type | Metric |
| Cutting Diameter (DC) | 10.88 mm | Grade | AC22 |
| Overall Length (OAL) | 84 mm | Depth of Cut Maximum (APMX) | 16.33 mm |
| Flute Count (NOF) | 4 | Body Material | Carbide |
| Shank Type | Round | Connection Code Machine Side (CCMS) | Cylindrical |
| Coating | TiAlN | Thread Form Type (THFT) | BSPT55 |
| Application | | External Thread Milling | Internal Thread Milling | | Unit | M |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
Product Features
| Family Description | Solid Carbide Threading Endmills for External or Internal BSPT Thread Profile | COO | Israel |
Shipping Info
Weight per item
0.0003
