| Thread Pitch (TP) | 0.45 mm | Cutting Edge Material | Carbide |
| Threads per Inch (TPI) | 0 | Cutting Position | Internal |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Usable Length (LU) | 5.5 mm |
| Cutting Diameter (DC) | 1.95 mm | Measurement Type | Metric |
| Overall Length (OAL) | 58 mm | Grade | ZA212 |
| Flute Count (NOF) | 3 | Depth of Cut Maximum (APMX) | 0 mm |
| Coolant Supply Property (CSP) | External | Corner Chamfer Width (CHW) | 0 mm |
| Shank Type | Round | Cutting Direction (HAND) | Left Hand |
| Coating | TiAlN+ | Body Material | Carbide |
| Application | | Internal Thread Milling | | Connection Code Machine Side (CCMS) | Cylindrical |
| Applicable Material | | Steel | Stainless Steel | Hard Materials | Super-Alloys / Titanium | | Thread Form Type (THFT) | M60 |
| Flute Helix Angle (FHA) | 0 Degrees | Unit | M |
| Pitch Internal | mm |
Product Features

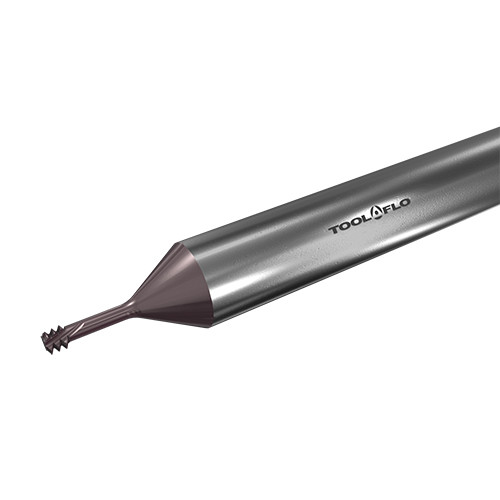

| Family Description | Small Diameter Short Left-Hand Cut. Internal ISO Profile Threading Endmills for Hardened Steel | COO | Israel |
Shipping Info
Weight per item
0.0000
