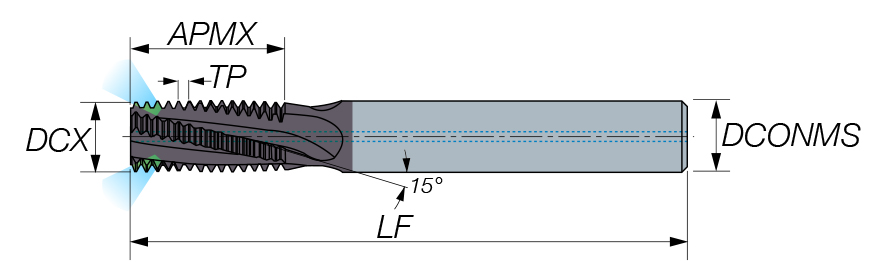

| Thread Size | RC1/8 | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Thread Pitch (TP) | 0.907 mm | Cutting Edge Material | Carbide |
| Threads per Inch (TPI) | 28 | Cutting Position | BOTH |
| Connection Diameter Machine Side (DCONMS) | 8 mm | Measurement Type | Metric |
| Cutting Diameter (DC) | 7.8 mm | Grade | AC22 |
| Overall Length (OAL) | 64 mm | Depth of Cut Maximum (APMX) | 14.1 mm |
| Flute Count (NOF) | 3 | Cutting Direction (HAND) | Right Hand |
| Coolant Supply Property (CSP) | Coolant Thru | Body Material | Carbide |
| Shank Type | Round | Connection Code Machine Side (CCMS) | Cylindrical |
| Coating | TiAlN | Thread Form Type (THFT) | BSPT55 |
| Application | | External Thread Milling | Internal Thread Milling | | Unit | M |
Product Features
| Family Description | Solid Carbide Threading Endmills with Coolant Holes Located in the Flutes for Internal or External BSPT Thread Profile | COO | Israel |
