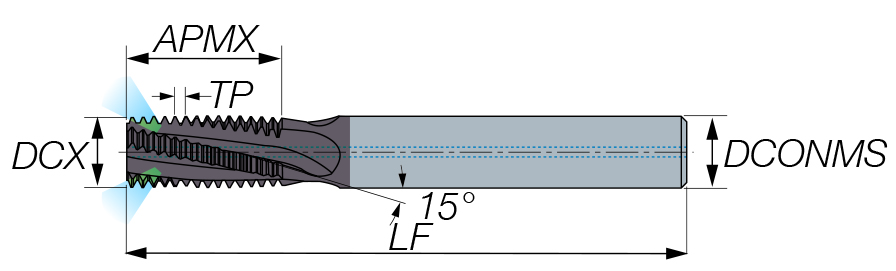

| Thread Size | 1/8″ NPT | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Threads per Inch (TPI) | 27 | Cutting Edge Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 8 mm | Cutting Position | BOTH |
| Cutting Diameter (DC) | 7.6 mm | Measurement Type | Metric |
| Overall Length (OAL) | 64 mm | Grade | AC22 |
| Flute Count (NOF) | 3 | Depth of Cut Maximum (APMX) | 10.8 mm |
| Coolant Supply Property (CSP) | Coolant Thru | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Body Material | Carbide |
| Coating | TiAlN | Thread Form Type (THFT) | NPT60 |
| Application | | External Thread Milling | Internal Thread Milling | | Unit | M |
Product Features
| Family Description | Solid Carbide Internal and External NPT Profile Threading Endmills with Coolant Holes Located in the Flutes | COO | Israel |
Shipping Info
Weight per item
0.0000
