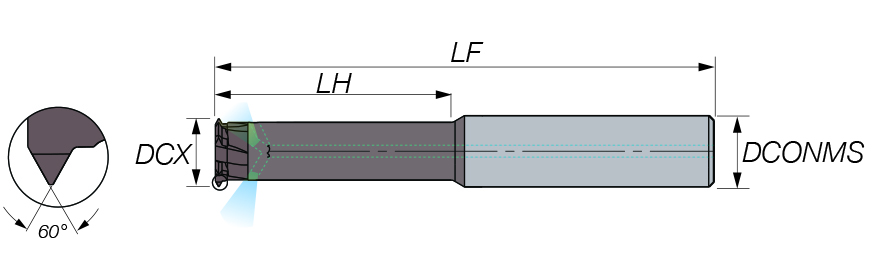

MTECI 1212E39 A60 AC22
60° Partial Profile Solid Carbide Thread Mills for Internal and External Threads
| Thread Size | =>14 | Pitch Internal | 1.00-1.75 mm |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Pitch External | 0.8-1.5 mm |
| Cutting Diameter (DC) | 12 mm | Cutting Edge Material | Carbide |
| Overall Length (OAL) | 84 mm | Cutting Position | BOTH |
| Flute Count (NOF) | 5 | Usable Length (LU) | 39 mm |
| Coolant Supply Property (CSP) | Coolant Thru | Measurement Type | Metric |
| Shank Type | Round | Grade | AC22 |
| Coating | TiAlN | Body Material | Carbide |
| Application | | External Thread Milling | Internal Thread Milling | | Connection Code Machine Side (CCMS) | Cylindrical |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Thread Form Type (THFT) | M60 |
| Pitch TPI Internal (TPI Int) | 28-14 Threads/inch | Unit | M |
| Pitch TPI External (TPI Ext) | 32-16 Threads/inch |
Product Features
| Family Description | 60° Partial Profile Solid Carbide Thread Mills for Internal and External Threads | COO | Israel |
Shipping Info
Weight per item
0.0000
