| Thread Pitch (TP) | 1 mm | Cutting Edge Material | Carbide |
| Threads per Inch (TPI) | 0 | Cutting Position | Internal |
| Connection Diameter Machine Side (DCONMS) | 1/4″ | Usable Length (LU) | 0.79″ |
| Cutting Diameter (DC) | 0.183″ | Measurement Type | Inch |
| Overall Length (OAL) | 2-1/2″ | Grade | AC22 |
| Flute Count (NOF) | 3 | Depth of Cut Maximum (APMX) | 0″ |
| Coolant Supply Property (CSP) | External | Corner Chamfer Width (CHW) | 0″ |
| Shank Type | Round | Cutting Direction (HAND) | Right Hand |
| Coating | TiAlN | Body Material | Carbide |
| Application | | Internal Thread Milling | | Connection Code Machine Side (CCMS) | Cylindrical |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Thread Form Type (THFT) | M60 |
| Flute Helix Angle (FHA) | 0 Degrees | Unit | I |
Product Features

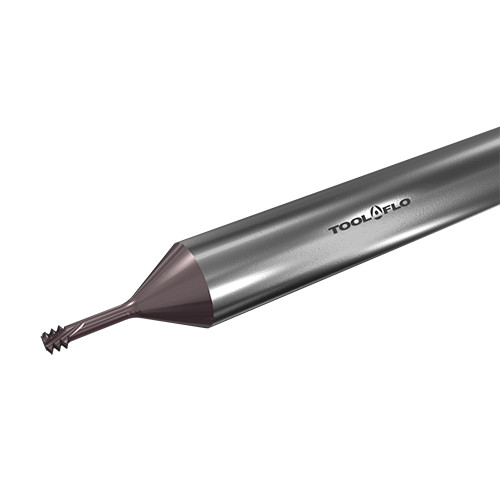

| Family Description | Small Diameter Solid Carbide Internal ISO Profile Threading Endmills with Short Contact Area | COO | Israel |
Shipping Info
Weight per item
0.0000
