| Thread Size | 1/16″ NPTF | Flute Helix Angle (FHA) | 15 Degrees |
| Thread Pitch (TP) | 0 mm | Cutting Edge Material | Carbide |
| Threads per Inch (TPI) | 27 | Cutting Position | BOTH |
| Connection Diameter Machine Side (DCONMS) | 1/4″ | Measurement Type | Inch |
| Cutting Diameter (DC) | 0.23″ | Grade | AC22 |
| Overall Length (OAL) | 2-1/2″ | Depth of Cut Maximum (APMX) | 0.39″ |
| Flute Count (NOF) | 3 | Corner Chamfer Width (CHW) | 0″ |
| Coolant Supply Property (CSP) | External | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Body Material | Carbide |
| Coating | TiAlN | Connection Code Machine Side (CCMS) | Cylindrical |
| Application | | External Thread Milling | Internal Thread Milling | | Thread Form Type (THFT) | NPTF60 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Unit | I |
Product Features

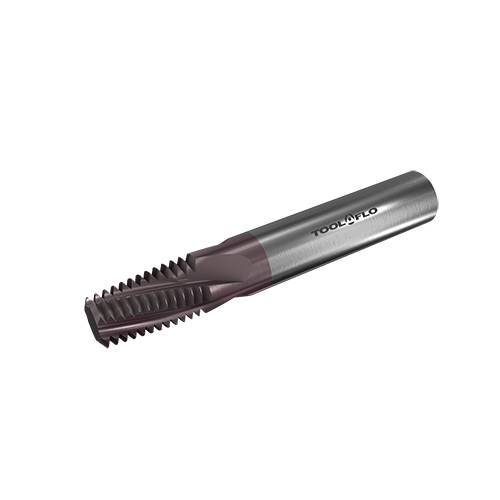

| Family Description | Solid Carbide Threading Endmills for External or Internal NPTF Thread Profile | COO | Israel |
Shipping Info
Weight per item
0.0000
