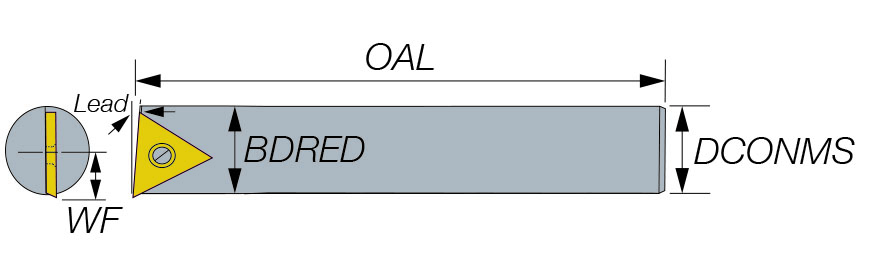

| Connection Diameter Machine Side (DCONMS) | 3/8″ | Frontal Edge Angle | 5 Degrees |
| Overall Length (OAL) | 6″ | Body Material | Carbide |
| Head Length (LH) | 0.745″ | Measurement Type | Inch |
| Functional Width (WF) | 0.221″ | Insert Style | TPCB | TPCG |
| Minimum Bore Diameter (DMIN) | 0.438″ | Neck Diameter (DN) | 0.39″ |
| Cutting Direction (HAND) | Right Hand | Unit | I |
| Application | | Int Boring Bantam | |
Product Features

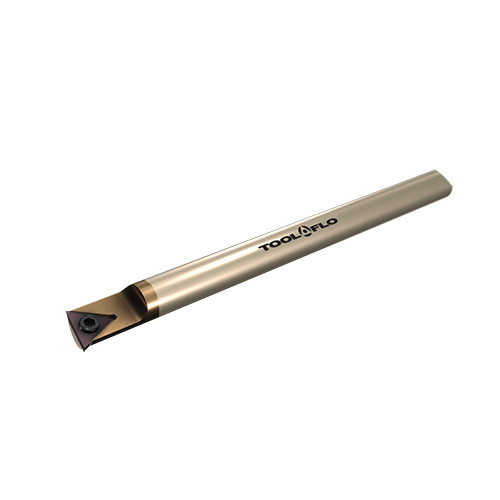

| Family Description | Internal 5° Lead Boring Bar with Carbide Shank for TPCB and TPCG MicroCut Inserts | FamilyName | QCBI |
| COO | USA | BrandName | Tool-Flo |
Shipping Info
Weight per item
0.0000
Name
Indexable Internal Turning Tools
FamilyName
QCBI
BrandName
Tool-Flo
