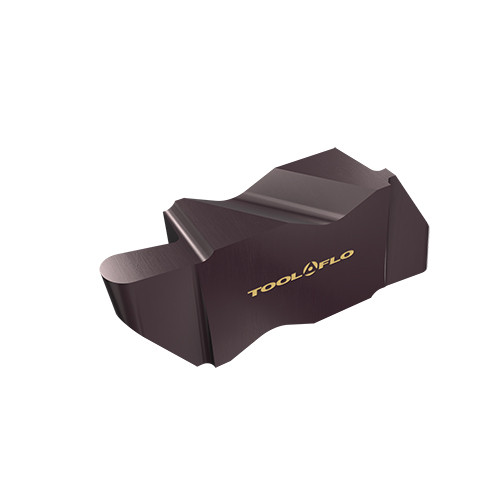

FLRP-3031R C3
Internal and External Full Nose Radius Grooving #3 Gage FloLock Inserts with 5° Positive Rake and Right Hand Clamping Notch
| Cutting Width (CW) | 0.062″ | Application | | Int Ext Grooving Flo Lock | |
| Corner Radius (RE) | 0.031″ | Cutting Direction (HAND) | Right Hand |
| Cutting Depth Maximum (CDX) | 1/8″ | Chip Breaker Type | PR |
| Thread Pitch Maximum (TPX) | 0.014 mm | Measurement Type | Inch |
| Insert Thickness (S) | 0.195″ | Body Material | Carbide |
| Coating | Uncoated | Cutting Edge Length (L) | 0.403″ |
| Grade | C3 | Height | 0.344″ |
| Shape | Parrallelogram | Unit | I |
| Cutting Edge Material | Carbide |
Product Features
| Family Description | Internal and External Full Nose Radius Grooving #3 Gage FloLock Inserts with 5° Positive Rake and Right Hand Clamping Notch | FamilyName | FLRP-3-RH |
| COO | USA | BrandName | Tool-Flo |
Shipping Info
Weight per item
0.0005
Name
Groove/Turn Indexable Inserts
FamilyName
FLRP-3-RH
BrandName
Tool-Flo
