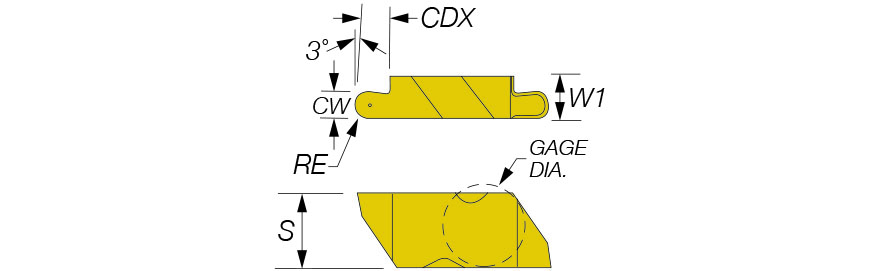

| Cutting Width (CW) | 0.094″ | Application | | Int Ext Grooving Flo Lock | |
| Corner Radius (RE) | 0.047″ | Applicable Material | | Steel | Stainless Steel | Hard Materials | Super-Alloys / Titanium | |
| Cutting Depth Maximum (CDX) | 0.11″ | Cutting Direction (HAND) | Right Hand |
| Thread Pitch Maximum (TPX) | 0.009 mm | Measurement Type | Inch |
| Insert Thickness (S) | 0.15″ | Body Material | Carbide |
| Coating | TiAlN | Cutting Edge Length (L) | 0.268″ |
| Grade | AC3R | Height | 0.219″ |
| Shape | Parrallelogram | Unit | I |
| Cutting Edge Material | Carbide |
Product Features
| Family Description | Internal and External Full Nose Radius Grooving #2 Gage FloLock Inserts with Right Hand Clamping Notch | FamilyName | FLR-2-RH |
| COO | USA | BrandName | Tool-Flo |
Shipping Info
Weight per item
0.0002
Name

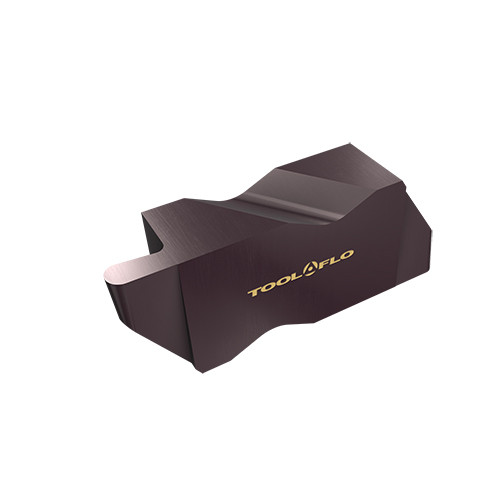

Groove/Turn Indexable Inserts
FamilyName
FLR-2-RH
BrandName
Tool-Flo
