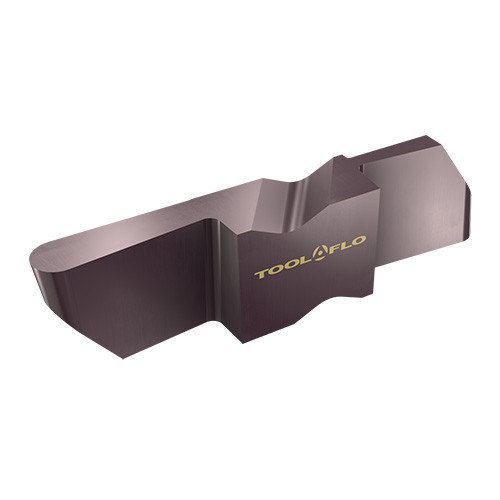

FLRT-3062L AC3R
Internal and External Extra Deep Full Nose Radius Grooving #3 Gage FloLock Inserts with Left Hand Clamping Notch (Double-Ended)
| Cutting Width (CW) | 1/8″ | Application | | Ext Deep Grooving Flo Lock | |
| Corner Radius (RE) | 0.062″ | Applicable Material | | Steel | Stainless Steel | Hard Materials | Super-Alloys / Titanium | |
| Cutting Depth Maximum (CDX) | 0.437″ | Cutting Direction (HAND) | Left Hand |
| Thread Pitch Maximum (TPX) | 0.014 mm | Measurement Type | Inch |
| Insert Thickness (S) | 0.195″ | Body Material | Carbide |
| Coating | TiAlN | Cutting Edge Length (L) | 0.855″ |
| Grade | AC3R | Height | 0.344″ |
| Shape | Parrallelogram | Unit | I |
| Cutting Edge Material | Carbide |
Product Features
| Family Description | Internal and External Extra Deep Full Nose Radius Grooving #3 Gage FloLock Inserts with Left Hand Clamping Notch (Double-Ended) | FamilyName | FLRT-3-LH |
| COO | USA | BrandName | Tool-Flo |
Shipping Info
Weight per item
0.0005
Name
Groove/Turn Indexable Inserts
FamilyName
FLRT-3-LH
BrandName
Tool-Flo
