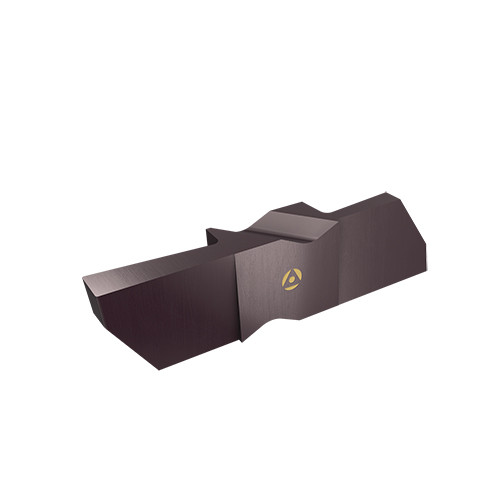

FLGT-4125R AC3R
Internal and External Extra Deep Grooving #4 Gage FloLock Inserts with Right Hand Clamping Notch (Double-Ended)
| Cutting Width (CW) | 1/8″ | Application | | Int Ext Deep Grooving Flo Lock | |
| Corner Radius (RE) | 0.0075″ | Applicable Material | | Steel | Stainless Steel | Hard Materials | Super-Alloys / Titanium | |
| Cutting Depth Maximum (CDX) | 0.55″ | Cutting Direction (HAND) | Right Hand |
| Thread Pitch Maximum (TPX) | 0.018 mm | Measurement Type | Inch |
| Insert Thickness (S) | 0.255″ | Body Material | Carbide |
| Coating | TiAlN | Cutting Edge Length (L) | 1.136″ |
| Grade | AC3R | Height | 0.453″ |
| Shape | Parrallelogram | Unit | I |
| Cutting Edge Material | Carbide |
Product Features
| Family Description | Internal and External Extra Deep Grooving #4 Gage FloLock Inserts with Right Hand Clamping Notch (Double-Ended) | FamilyName | FLGT-4-RH |
| COO | USA | BrandName | Tool-Flo |
Shipping Info
Weight per item
0.0008
Name
Groove/Turn Indexable Inserts
FamilyName
FLGT-4-RH
BrandName
Tool-Flo
