| Cutting Width (CW) | 0.094″ | Applicable Material | | Steel | Stainless Steel | |
| Corner Radius (RE) | 0.0075″ | Cutting Direction (HAND) | Left Hand |
| Cutting Depth Maximum (CDX) | 0.27″ | Chip Breaker Type | CB |
| Insert Thickness (S) | 0.195″ | Measurement Type | Inch |
| Coating | TiN | Body Material | Carbide |
| Grade | GP50C | Cutting Edge Length (L) | 0.505″ |
| Shape | Parrallelogram | Height | 0.344″ |
| Cutting Edge Material | Carbide | Unit | I |
| Application | | Int Ext Deep Grooving Flo Lock | |
Product Features

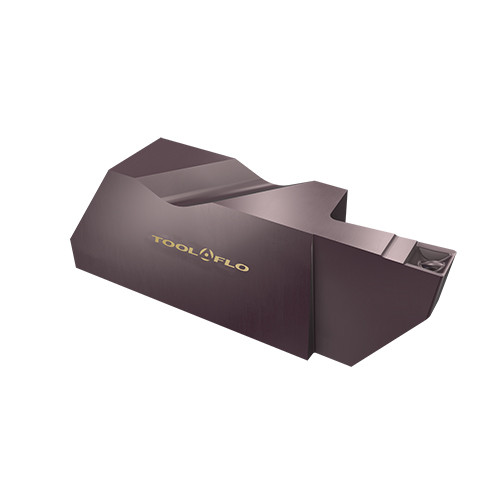

| Family Description | Internal and External Deep Grooving #3 Gage FloLock Inserts with Chip Control and Left Hand Clamping Notch | FamilyName | FLGD-3-LH-CB |
| COO | USA | BrandName | Tool-Flo |
Shipping Info
Weight per item
0.0005
Name
Groove/Turn Indexable Inserts
FamilyName
FLGD-3-LH-CB
BrandName
Tool-Flo
